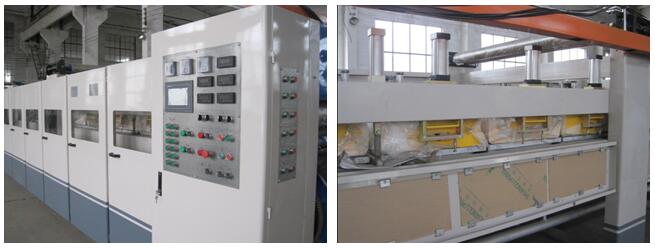

※Structural feature
PRODUCT SPECIFICATIONS
What you want to know is that we work hard.
1. temperature requirement：160—200℃ steam pressure：0.8-1.3Mpa 2. air source pressure：0.6—0.9Mpa 3. Cooling stereotypes length：4m Heating plate quantity：14 pieces 4. Hydraulic system pressure:6---8Mpa max working width:200m/minParameters
※Technical parameters
※Roller diameter parameters
1. upper drive rubber roller diameter：￠440mm lower drive rubber roller diameter： ￠440mm Wear rubber Outsourcing 2. Former follower with roller diameter：￠270mm After setting belt driven roller diameter：￠186mm 3. pressure belt roller diameter：￠70mm Shaping roller diameter：￠86mm 4. The belt tension roller diameter：￠130mm The roll diameter with detuning：￠124mm 5. Under the belt tension roller diameter：￠130mm Entrusted with the roll diameter under the belt：￠130mm Note: All the roller surface after grinding are hard chrome plated. ★Hot plate with intensive gravitational roll structure.Pressure roller with lifting hydraulic structure ★heat pipe of the heating board three section of control temperature, temperature display. ★up cotton belt with double cylinder S cotton belt tensioning device. ★bottom cotton belt with s-shaped correction manually tensioning mechanism, structure simple and practical，under with manual fine-tuning. ★Drive roller coated with attached wear-resistant rubber ，showed a herringbone structure，With a high, ensure smooth cardboard output. ★Main drive motor for frequency conversion motor，low-speed torque，wide speed range ,reliable, and easy maintenance. ★hot plate internal for partition isolation structure,s-shaped flow of steam，Steam, water separation function significantly improves the utilization of steam.
※Powered motor parameters

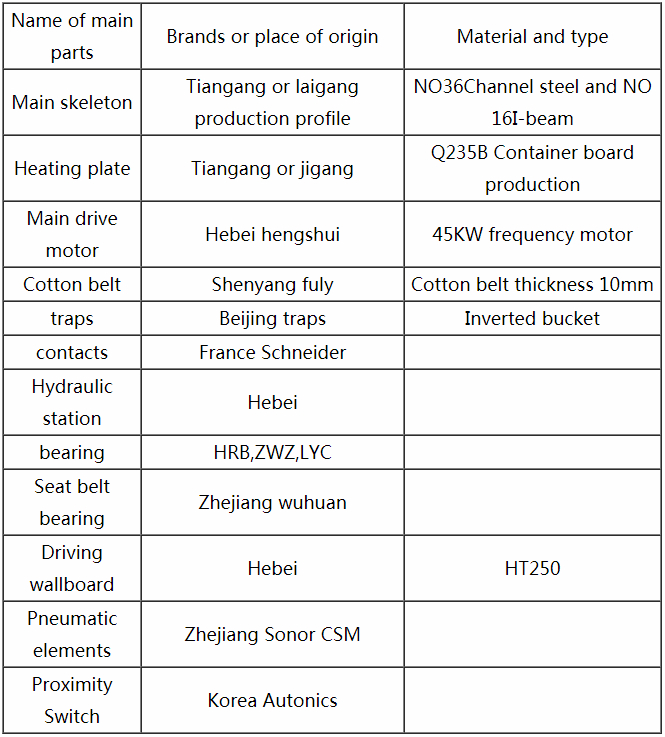

1. Main drive motor power：45KW 380V 50Hz Continuous (S1) working standard※Mainly purchased parts, raw materials and origin
