※Structural feature
PRODUCT SPECIFICATIONS
What you want to know is that we work hard.
1. MAX. effective width：2500mm 2. operation direction：left or right（Determined in accordance with the customer's facility) 3. The highest design speed：300m/min 4. air source system：0.4—0.9Mpa 5. temperature range of the preheater：150—200℃ 6. steam pressure：1.12—1.3MpaParameters
※Technical parameters
※Roller diameter parameters
1. glue roller：￠320mm doctor roller：￠153mm 2. upper preheat roller：￠402mm pass the paper roller：￠110mm★electric adjustment display the glue amount. Automatic cycle for glue, glue avoid sedimentation, viscosity stability. ★Pneumatic structure platen gap by electric tuning. On the next floor are made independent variable frequency motor drive. ★take the speed signal of the double facer,so as to synchronous operation with it. Man-machine interface display, easy operation ★amount of glue automatic adjustment control，amount of glue automatic adjustment with the produce speed, in automatic mode, you can also get in manual tuning.※Powered motor parameters

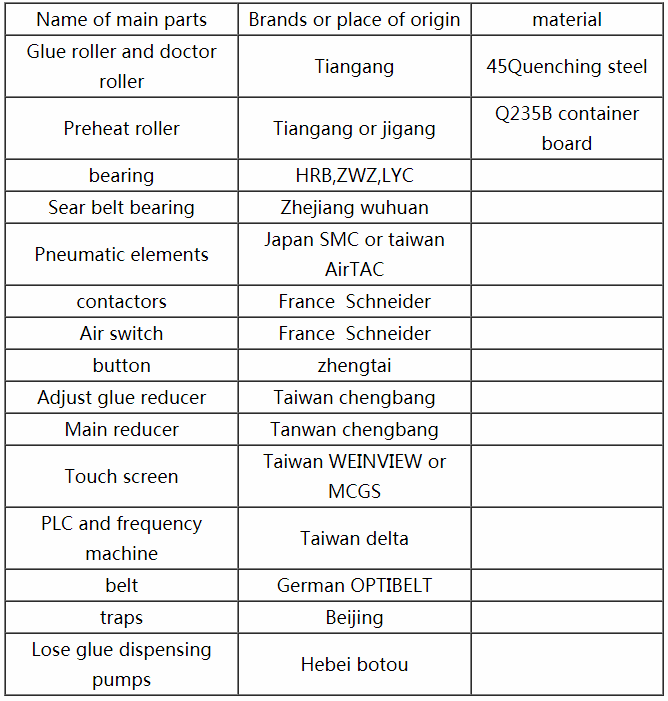

1. glue roller initiative frequency motor：3.7KW*2 380V 50Hz Continuous (S1) working standard 2. Electrical adjusting glue pushrod:90W 24V short（S2）working system 3. Electrical pressure roller gap pushrod:90W 24V short（S2）working system 4. glue pump motor:2.2KW 380V 50Hz Continuous （S1）working system※Mainly purchased parts, raw materials and origin
