※Structural feature
PRODUCT SPECIFICATIONS
What you want to know is that we work hard.
1. the range of paper jams: maximum: 1800mm minimum: 600mm 2. the diameter of paper jams: maximum: ￠1600mm minimum: ￠400mm 3. Unilateral maximum load: maximum2000Kg 4. Powered motor parameters: ①Paper jams motor550W×4set 380V 50HZ short（S2）working standard ②lift motor 1.5KW 380V 50HZ short（S2）working standardParameters
※Technical parameters

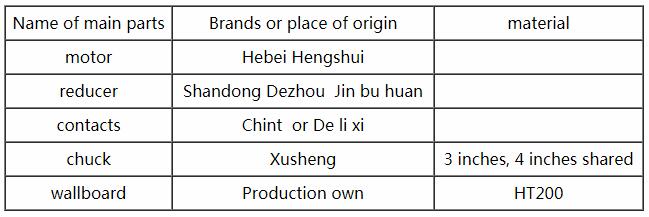

※Mainly purchased parts, raw materials and origin

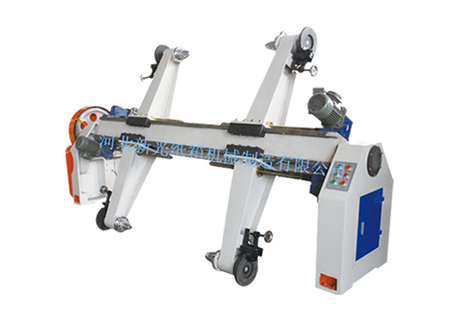

★Symmetrical structure can also install two bundles of paper at the same time，Paper can be used for non-stop for a job;Adopts mechanical drive to complete the paper clamping, lifting, loosen, move on, around translational motion, etc. ★each shaftless mill roll stand is equipped with two pieces of paper guide, two set of paper car;paper guide the use of channel 14 and the guide post weld，paper car adopt 10mmwelded stell，the length of track is 6000mm. ★manual dics brake，add screw following ★electric elements centralized control the electric elements，toothed chuck.
