※Structural feature
PRODUCT SPECIFICATIONS
What you want to know is that we work hard.
1. Effective width: 1800mm 2. preheat roller: ￠900mm angle shaft: ￠110mm 3. range of angle adjustment: 360°rotation 4. diameter of angle shaft: ￠110mm×2 5. steam temperature: 150-180℃ 6. pressure: 0.8-1.3Mpa 7. equipment size: Lmx3.3*Wmx1.1*Hmx3.9 8. single weight: MAX6000Kg 9. working power supply: 380V 50Hz 10. motor power: 250W short（S2）working systemParameters
※Technical parameters

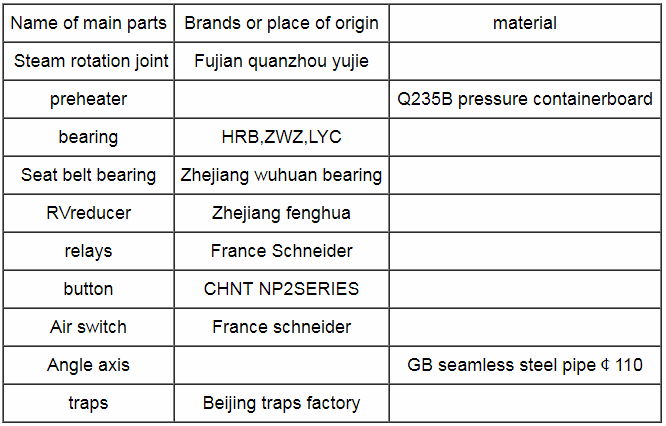

※Mainly purchased parts, raw materials and origin
★preheat roller accord with the national standard of the pressure vessal，and enclosed the pressure container certificate and inspection certificate. ★Each roller surface after grinding precision grinding and dealing with hard chrome plating, Surface friction is small, durable. ★electromotion adjustable angle, it can rotated adjust the paper preheat area in the range of 360°.
