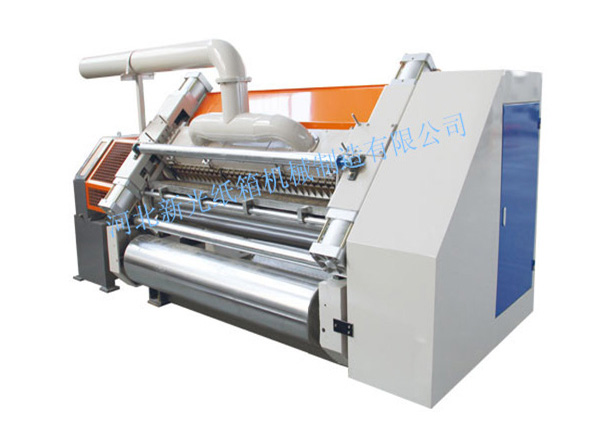

※Structural feature
PRODUCT SPECIFICATIONS
What you want to know is that we work hard.
1. effective width：1600mm 2. operation direction：left or right（Determined in accordance with customer plant） 3. design speed：100m/min 4. temperature range：200—260℃ 5. corrugate flute:UV type or UVV typeParameters
※Technical parameters
※Roller diameter parameters
1. corrugated roll diameter: ￠280mm 2. pressure roll diameter: ￠285mm 3. glue roll diameter: ￠216mm 4. preheat roll diameter: ￠320mm★Using suction hood structure, matches strong high pressure blower. Suction with a silencer.,air source and electrical control focux on the same operation counter, away from the motor is not less than 1.5m, operating side closed full cover. ★base and wallboard cast iron wall, Wallboard thickness130mm. universal Joints. ★corrugated roller material adopt 48CrMoalloy steel, quenched、Laser hardening, Surface finish, main roller of corrugated diameter¢ 280mm, surface hardnessHRC60degree above. The key parts of the tile and pressure roller bearings Wafangdian produce high temperature bearings. ★pressure roller ¢ 284mm,surface grinding and chrome-plated；cylinder control and remove up and down, 45 carbon steel materials, quenching (with cushioning devices). ★pneumatic control glue to glue back, glue roller diameter ￠215mm,Engraved polished surface after a 25-line pit style textured machined chrome plated, after scraping the roller surface polished hard chrome plated. ★Corrugated roller, pressure roller materials provided by the Central Plains Steel, High on corrugating unilateral 0.15mm, 0.075mm high pressure roller unilateral. Plus stopper. ¢ 160mm cylinder with compression cylinder. ★preheat roll adopt seamless steel pipe production by tiangang ¢ 300mm, connecting with metal Hose.※Powered motor parameters

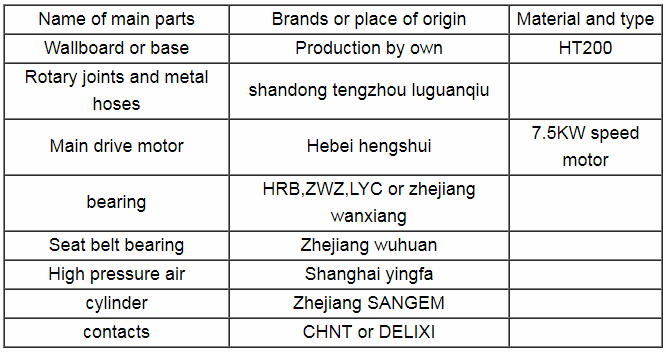

1. main drive motor: 7.5KW rated voltage: 380V 50Hz continuous（S1）working system 2. suction motor:7.5KW rated voltage: 380V 50Hz continuous（S1）working system※Mainly purchased parts, raw materials and origin
