※Structural feature
PRODUCT SPECIFICATIONS
What you want to know is that we work hard.
1. effective width：1600mm 2. The maximum mechanical speed：100m/min 3. Mechanical configuration： 5knives 8lines 4. The minimum width of the cutter：135mm 5. The maximum width of the cutter：1850mmParameters
※Technical parameters
★Overcome the conventional type of pole, cutting pressure lines appear when collapsed cardboard cut phenomenon, cutting board smooth, quality has improved significantly. ★the whole machine can remove left and right,cycloid reducer to adjust. ★Cutter and easy to adjust the pressure line, the error ± 0.5mm, automatic sharpening device, you can achieve timing Brothers, with intermittent Brothers and other features. ★the machine adopt five knives eight lines,the blade is made of tungsten alloy steel, the using life is not less than 3 million running meters.※Powered motor parameters

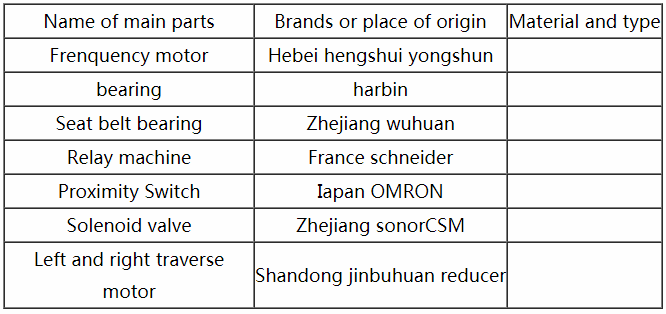

1. Line cutter line motor:0.4KW 2. Knife wheel drive motor:5.5KW※Mainly purchased parts, raw materials and origin
